Supravox

245 Heritage EXC 50W bass-midrange driver / 96 to 100dB / 8 Ohms

245 Heritage EXC 50W bass-midrange driver / 96 to 100dB / 8 Ohms

€1.239,00 EUR
€1.239,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Heritage Series

The SUPRAVOX loudspeakers of the Heritage Serie are directly inspired by the brand's legendary products.

This brand new loudspeaker utilizes the original cone of the "T. 245 BASSES" of the sixties. We have indeed developed this loudspeaker by starting from the original models in order to find the sound qualities that have satisfied music lovers over the past decades.

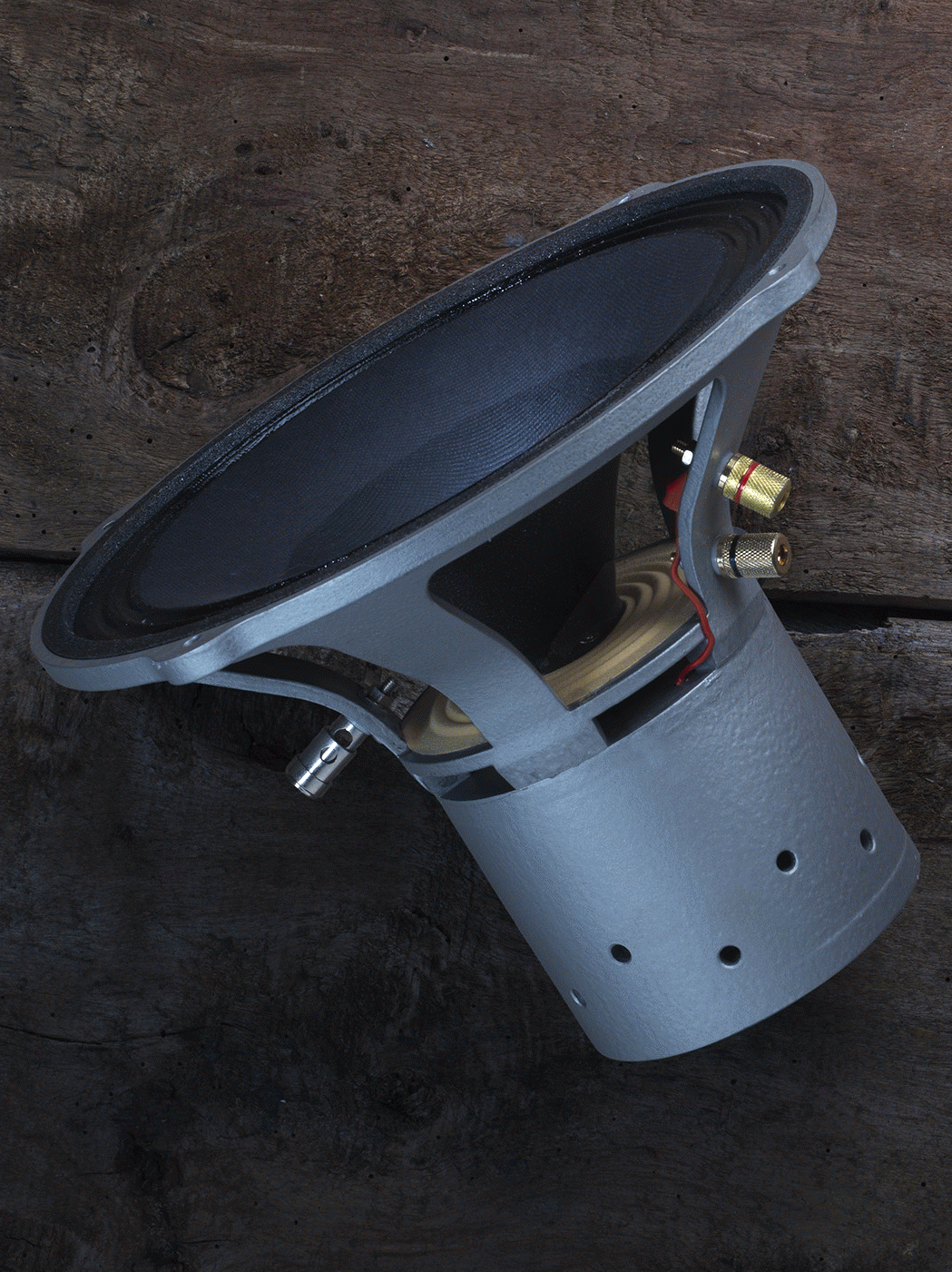

We have designed a new, very rigid injected aluminum basket, ventilated under the spider. The field of the motor has been optimized under FEA software, its high quality of manufacture is ensured by a CNC automatic winding machine. For this 245 we have designed a new voice-coil, lightweight, in copper-plated aluminum wire. A thorough study of the treatment of the cone ensures a linear and very extended response.

The high sensitivity of this transducer allows a wide adjustment range catering to the audio lover needs. From 6V for a bass-reflex, up to 15V for a very high efficiency horn system. A balanced and extended bass response, even on a flat baffle, is obtained from 6V. When listening, this HP is particularly musical due to its excellent tonal balance and low distortion.

Frequency response in 1/3 octaves, dBspl/1m/2.83V at 0° and 30°.
Temporal amortization.
Impedance curve.

TECHNICAL CHARACTERISTICS
Below are the 2019 parameters, measured using AES2-1984-r2003.

Sensitivity 2.83V/1m: 97 to 99.5 dBspl
Sensitivity 1W/1m: 96 to 98.5 dBspl
Bandwidth : 50Hz-8KHz
Impedance: 8 ohms
power max. RMS : 50W
Cone : Paper
Suspension : 3 ply paper
Diameter of the coil : 35 mm
X max : +/- 3,5 mm
X damage : 9 mm
Magnet : Excitation
Mounting hole distance: 249mm
Enclosure drilling diameter: 237mm
HP depth: 183mm
Basket:  Aluminium.
Power supply : 6 to 14 V DC.
Fs : 50.4 to 50.9 Hz
Re : 6.5 Ohms
And 1 kHz : 0.75 to 0.625 mH
Qts : 0.44 to 0.27
Qes: 0.506 to 0.29
Qms : 3.37 to 3.49
Vas: 100 to 98 L
Bl : 7.9 to 10.5
Mms : 15,4 g
Sd : 330 cm²
View full details

High-Precision Craftsmanship: Made in France

Each Supravox loudspeaker inherits expertise born in the 1950s. From the iconic 215 RTF 64 to today's innovations, our loudspeakers are entirely hand-assembled in our workshop just outside Paris. A French standard of perfection that defies time to deliver pure musical emotion.

  • The Artisan's Touch

    At the heart of our factory on the outskirts of Paris, each voice coil is hand-wound with micrometric tension. We use ultra-light supports and high-purity conductors to minimize moving mass. It is this extreme lightness that gives our loudspeakers their legendary responsiveness and their ability to reveal the finest details.

  • The Hand and the Spirit

    Each loudspeaker is a unique piece, assembled by craftsmen whose expertise has been passed down for decades. The precision of the centering and the tension of the suspensions are adjusted by touch, a sensitivity that no machine can replicate. This artisanal assembly guarantees perfect fluidity of movement and exceptional longevity.

  • Exponential Paper Cones

    Our cones are made from a proprietary recipe of long-fiber paper, manually processed to achieve an ideal balance of rigidity and damping. The exponential profile, pioneered by Supravox, ensures homogeneous sound diffusion. The result is an organic timbre and strikingly realistic vocal presence.

  • Magnetic Alchemy

    Beyond the simple magnet, we master energy. In our factory on the outskirts of Paris, we forge Alnico 5 motors and Field Coil systems capable of saturating the air gap with absolute precision. This controlled power offers lightning-fast dynamics and almost zero distortion, hallmarks of Supravox's high sensitivity.

  • Signal Purity

    Perfection often comes from subtraction. By designing full-range loudspeakers capable of covering most of the spectrum, we eliminate the need for crossover filters. The signal travels directly from your amplifier to the cone, preserving perfect phase coherence and a holographic soundstage of complete transparency.

  • Tested for Eternity

    Each unit leaving our workshops undergoes a rigorous testing protocol: frequency analysis, impedance measurement, and tactile inspection of the excursion. But the final verdict belongs to the human ear. Each loudspeaker is validated by our technicians, ensuring that your investment will remain an exceptional instrument for decades to come.
